7945

Wafer Automated Optical Inspection (AOI) Equipment by Chroma ATE Inc (2 more products)
Download Datasheet Request Information

Note : Your request will be directed to Chroma ATE Inc.

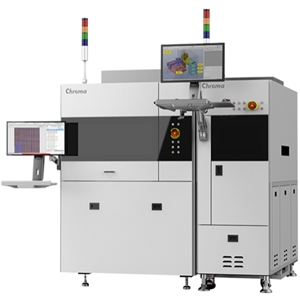

7945 Image

Product Specifications

Product Details

  • Part Number
    7945
  • Manufacturer
    Chroma ATE Inc

General Parameters

  • Air Supply
    6 bar
  • Camera
    25 MP
  • Cassette Load Port
    2 port
  • Chip Size
    8 x 8 mm
  • Defects
    Emitter Defect, Epi Defect, Discolor, Chipping, Scratches, Outside Emitter, Backside Chipping, Finger Broken, Peeling, Finger Scratch, Epitaxy Defect, Pad Lock, Double Chip, Pad Damage, Branch Broken, Blemish
  • Light Source
    LED Co-Axis Light, Ring Light, Back Light
  • Magnification
    2X, 5X, 10X
  • Net Weight
    3000 kg
  • Operating Temperature
    5 to 40 Degree C
  • Overall Dimensions
    1900 x 1600 x 2000 mm
  • Power Supply
    AC 220V ± 10%, 50/60 Hz, 1F, 4.4 kW
  • Resolution
    1.28 µm, 0.5 µm, 0.25 µm
  • Type
    Wafer Die Inspection
  • Wafer Size
    8 Inches
