Stratus III

Wafer Automated Optical Inspection (AOI) Equipment by Stratus Vision GmbH
Download Datasheet Request Information

Note : Your request will be directed to Stratus Vision GmbH.

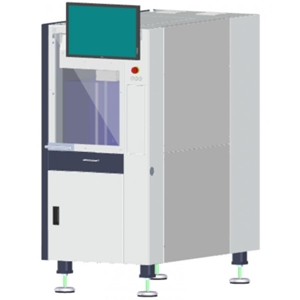

Stratus III Image

Product Specifications

Product Details

  • Part Number
    Stratus III
  • Manufacturer
    Stratus Vision GmbH

General Parameters

  • Accuracy
    2 µm
  • Air Supply
    6 bar, 40 L/min
  • Camera
    5 MP, 20 MP
  • Inspection Speed
    600 mm/sec
  • Light Source
    Multiple Toplights
  • Net Weight
    850 kg
  • Operating Temperature
    18.5 Degree C
  • Overall Dimensions
    1484 x 1000 x 2128 mm
  • Power Supply
    220 V AC 110 V AC, 50/60 Hz, 0.5 kW
  • Repeatability
    0.8 µm
  • Resolution
    3.5 µm to 10 µm
  • Type
    Wafer AOI
