Bondjet BJ959

Wire Bonder by Hesse GmbH (5 more products)

Note : Your request will be directed to Hesse GmbH.

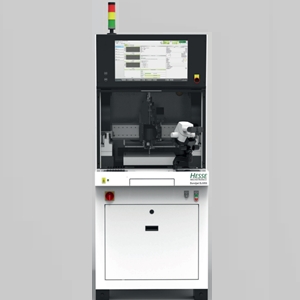

Bondjet BJ959 Image

Product Specifications

Product Details

  • Part Number
    Bondjet BJ959
  • Manufacturer
    Hesse GmbH

General Parameters

  • Bonding Method
    Wedge Bonder
  • Copper Wire Size
    50 to 600 µm
  • Motorized X and Y Travel
    370 x 560 mm
  • Motorized Z Travel
    42 mm
  • Net Weight
    1300 kg
  • Overall Dimensions
    805 x 1634 x 1912 mm
  • Power Supply
    230V AC
  • Ribbon Size
    250 x 25 µm up to 2000 x 400 µm

Technical Documents
