572A

Wire Bonder by HYBOND, Inc (5 more products)
Download Datasheet Request Information

Note : Your request will be directed to HYBOND, Inc.

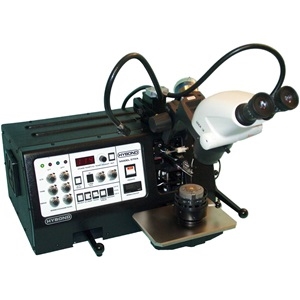

572A Image

Product Specifications

Product Details

  • Part Number
    572A
  • Manufacturer
    HYBOND, Inc

General Parameters

  • Bond Froce
    15 to 150 g
  • Bond Time
    10 to 400 ms
  • Bonding Method
    Wedge Bonder
  • Gold Wire Size
    12.7 to 50 µm
  • Motorized X and Y Travel
    152.4 x 215.9 mm
  • Motorized Z Travel
    12.7 mm
  • Net Weight
    24.9 kg
  • Power Supply
    120 VAC 50/60 Hz @ 10A
  • Ribbon Size
    25.4 x 254 µm
  • Temperature Control
    Ambient to 250 Degree C
  • Ultrasonic Power
    0 to 1 W to 0 to 2 W
  • Ultrasonic Frequency
    62.5 kHz
  • Wire Spool Size
    0.5 Inches, 2 Inches
