Thermosonic Ball Bonder

Download Datasheet Request Information

Note : Your request will be directed to Iwatani Corporation.

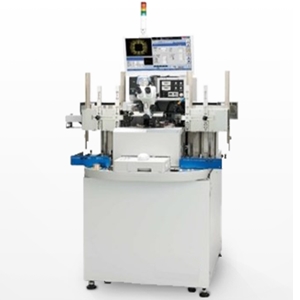

Thermosonic Ball Bonder Image

Product Specifications

Product Details

  • Part Number
    Thermosonic Ball Bonder
  • Manufacturer
    Iwatani Corporation

General Parameters

  • Bond Time
    50 ms/wire
  • Bonding Area
    56 x 95 mm
  • Bonding Method
    Ball Bonder
  • Leadframe Dimensions
    300 x 105 mm
  • Magazine Dimensions
    115 x 305 x 175 mm
  • Net Weight
    550 kg
  • Overall Dimensions
    1200 x 1085 x 1728 mm
  • Placement Accuracy
    ±3 µm
