POWERFUSION

Download Datasheet Request Information

Note : Your request will be directed to Kulicke and Soffa Industries, Inc.

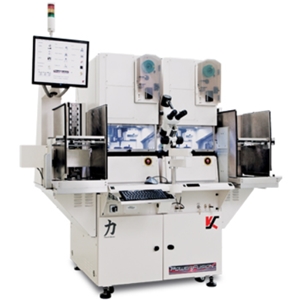

POWERFUSION Image

Product Specifications

Product Details

  • Part Number
    POWERFUSION
  • Manufacturer
    Kulicke and Soffa Industries, Inc

General Parameters

  • Air Pressure
    80 psi
  • Bonding Area
    80 x 78 mm
  • Bonding Method
    Wedge Bonder
  • Gold Wire Size
    100 to 500 µm, 25 to 75 µm
  • Motorized Z Travel
    50 mm
  • Net Weight
    800 kg
  • Overall Dimensions
    1828 x 1219 x 1676 mm
  • Power Supply
    180-240 VAC, Single Phase, 50/60 Hz, 4.0kVA
  • Repeatability
    3 µm
  • Ribbon Size
    500 x 100 µm to 2000 x 250 µm
  • Step Resolution
    0.1 µm
  • Wire Feed Angle
    45 Degree, 60 Degree
  • Workpiece Size
    300 x 80 mm
