POWERNEXX

Download Datasheet Request Information

Note : Your request will be directed to Kulicke and Soffa Industries, Inc.

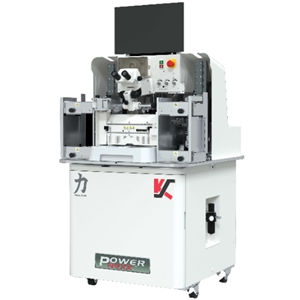

POWERNEXX Image

Product Specifications

Product Details

  • Part Number
    POWERNEXX
  • Manufacturer
    Kulicke and Soffa Industries, Inc

General Parameters

  • Air Consumption
    80 lpm
  • Air Pressure
    3.52 kg/sq cm
  • Bonding Area
    56 x 80 mm
  • Bonding Method
    Wire Bonder
  • Bonding Wire Length
    7.6 mm
  • Die Pad Downset
    Up to 2.3 mm
  • Different Leadframe Type
    8 min
  • Gold Wire Size
    25.4 µm
  • Leadframe Dimensions
    300 x 92 mm
  • Magazine Dimensions
    310 x 100 x 178 mm
  • Minimum Loop Height
    100 µm, 70 µm, 50 µm
  • Net Weight
    556 kg
  • Overall Dimensions
    Base Machine with MHS x 880 x 970 mm
  • Placement Accuracy
    2.5 µm
  • Power Supply
    200-240 VAC, -15% to 10%, Single Phase, 50/60 Hz, 1.3 KVA
  • Same Leadframe Type
    4 min
  • Wire Pitch
    1.27 to 25 mm
  • Wire Sway
    25 µm
