ULTRALUX

Download Datasheet Request Information

Note : Your request will be directed to Kulicke and Soffa Industries, Inc.

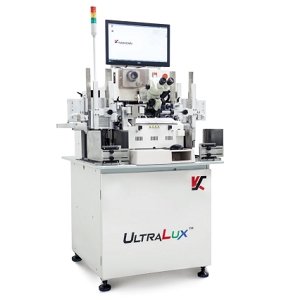

ULTRALUX Image

Product Specifications

Product Details

  • Part Number
    ULTRALUX
  • Manufacturer
    Kulicke and Soffa Industries, Inc

General Parameters

  • Air Consumption
    150 L/min
  • Air Pressure
    3.52 kg/sq cm
  • Bond Speed
    25 wire per sec
  • Bonding Area
    56 x 80 mm
  • Bonding Method
    Ball Bonder
  • Bonding Wire Length
    5 mm
  • Die Pad Downset
    Up to 2.3 mm
  • Different Leadframe Type
    20 min
  • Gold Wire Size
    25.4 µm
  • Leadframe Dimensions
    300 x 90 mm
  • Magazine Dimensions
    310 x 98 x 194 mm
  • Minimum Loop Height
    65 µm
  • Net Weight
    556 kg
  • Overall Dimensions
    Base Machine with MHS x 889 x 990 mm
  • Placement Accuracy
    3 µm
  • Power Supply
    200-240 VAC, -15% to 10%, Single Phase, 50/60 Hz, 2 KVA
  • Same Leadframe Type
    5 min
  • Wire Sway
    25 µm
