iBond5000-Dual

Wire Bonder by Micro Point Pro (2 more products)
Download Datasheet Request Information

Note : Your request will be directed to Micro Point Pro.

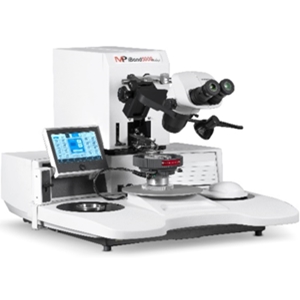

iBond5000-Dual Image

Product Specifications

Product Details

  • Part Number
    iBond5000-Dual
  • Manufacturer
    Micro Point Pro

General Parameters

  • Bond Froce
    10 to 120 g
  • Bond Time
    10 to 100 ms, 10 to 1000 ms
  • Bonding Area
    135 x 135 mm
  • Bonding Method
    Ball Bonder, Wedge Bonder
  • Bonding Tool
    19 to 21 mm
  • Copper Wire Size
    20 to 75 µm
  • Fine Table Motion
    14 mm
  • Gold Wire Size
    17 to 70 µm
  • Gross Table Motion
    140 mm
  • Motorized X and Y Travel
    4 mm, 0.25 mm, 0.5 mm
  • Motorized Z Travel
    12.5 mm
  • Net Weight
    31 kg
  • Overall Dimensions
    680 x 700 x 530 mm
  • Power Supply
    100-240V, 50/60 Hz
  • Ribbon Size
    25 x 250 µm
  • Temperature Control
    180 Degree C, 5 Degree C
  • Throat Depth
    143 mm
  • Ultrasonic Power
    1.3 to 3.0 W
  • Ultrasonic Frequency
    60 kHz
  • Wire Feed Angle
    90 Degree
  • Wire Spool Size
    2 x 1 Inches
