Q7800

Download Datasheet Request Information

Note : Your request will be directed to Questar Products International, Inc.

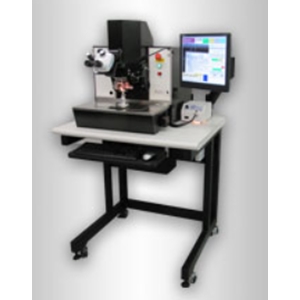

Q7800 Image

Product Specifications

Product Details

  • Part Number
    Q7800
  • Manufacturer
    Questar Products International, Inc

General Parameters

  • Bond Speed
    600 ms
  • Bonding Area
    4 x 3.65 Inches
  • Bonding Method
    Wedge Bonder
  • Gold Wire Size
    17.78 to 76.2 µm
  • Net Weight
    273 kg
  • Overall Dimensions
    880 x 990 x 1830 mm
  • Power Supply
    120 VAC, 50/60 Hz, 15A
  • Step Resolution
    1.6 µm
  • Wire Feed Angle
    30 Degree, 38 Degree, 45 Degree, 60 Degree
  • Wire Pitch
    69.85 µm
  • Wire Spool Size
    50.8 mm
