4KE

Wire Bonder by West Bond Inc (1 more product)
Download Datasheet Request Information

Note : Your request will be directed to West Bond Inc.

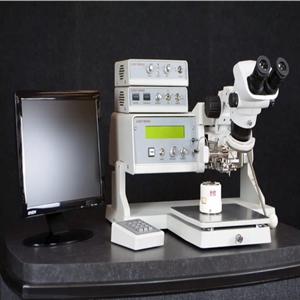

4KE Image

Product Specifications

Product Details

  • Part Number
    4KE
  • Manufacturer
    West Bond Inc

General Parameters

  • Air Pressure
    50 psi
  • Bond Froce
    10 to 250 g
  • Bond Time
    0 to 999 ms
  • Bonding Area
    280 x 280 mm, 508 x 208 mm
  • Bonding Method
    Ball Bonder, Wedge Bonder, Wire Bonder
  • Bonding Tool
    1.58 mm
  • Motorized X and Y Travel
    12.7 mm
  • Motorized Z Travel
    12.7 mm
  • Net Weight
    75 kg
  • Overall Dimensions
    615 x 566 x 295 mm
  • Power Supply
    100 - 120/220 - 240 VAC 50/60 Hz
  • Ribbon Size
    12.5 x 50 µm to 25 x 250 µm
  • Ultrasonic Power
    2.5 W, 4 W
  • Ultrasonic Frequency
    63 kHz, 110 kHz
  • Wire Feed Angle
    45 Degree, 90 Degree
  • Wire Spool Size
    50.8 mm
