GR-W02

Download Datasheet Request Information

Note : Your request will be directed to Green Intelligent Equipment(Shenzhen) Co., Ltd.

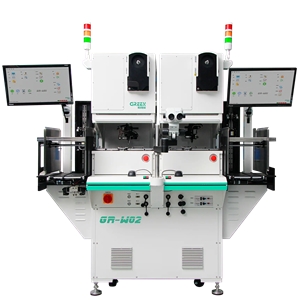

GR-W02 Image

Product Specifications

Product Details

  • Part Number
    GR-W02
  • Manufacturer
    Green Intelligent Equipment(Shenzhen) Co., Ltd

General Parameters

  • Air Pressure
    0.5 to 0.7 MPa
  • Bond Froce
    50 to 1000 g
  • Bonding Method
    Wire Bonder, Wedge Bonder
  • Copper Wire Size
    127 to 508 µm
  • Motorized X and Y Travel
    100 x 100 mm
  • Motorized Z Travel
    50 mm
  • Net Weight
    1200 kg
  • Overall Dimensions
    1820 x 1260 x 1700 mm
  • Placement Accuracy
    0.1 µm
  • Power Supply
    180-240V AC single phase, 50/60HZ, 4.0kVA

Technical Documents
