UTC-5100

Download Datasheet Request Information

Note : Your request will be directed to Yamaha Motor Corporation.

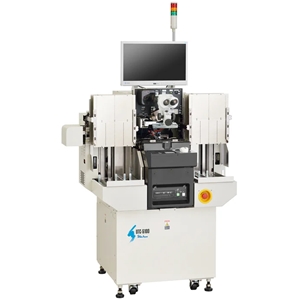

UTC-5100 Image

Product Specifications

Product Details

  • Part Number
    UTC-5100
  • Manufacturer
    Yamaha Motor Corporation

General Parameters

  • Bond Froce
    3 to 1000 gf
  • Bond Speed
    42 ms/0.7 mm wire (45 ms/2 mm wire)
  • Bonding Area
    66 x 95 mm
  • Bonding Method
    Wedge Bonder
  • Bonding Wire Length
    4 mm max
  • Net Weight
    520 kg
  • No of Bonding Wires
    12000 wires max
  • Overall Dimensions
    1244 x 964 x 2092 mm
  • Placement Accuracy
    3 µm
  • Power Supply
    Single Phase 100 VAC, 50/60 Hz, 1.2 kVA
  • Step Resolution
    0.1 µm
  • Workpiece Size
    300 x 102 mm
