RAD-2510F/12Sa

Note : Your request will be directed to LINTEC Corporation Advanced Materials Operations.

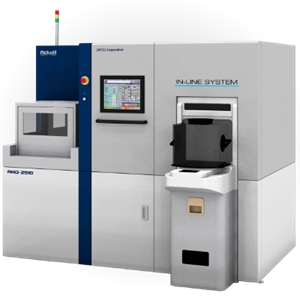

RAD-2510F/12Sa Image

Product Specifications

Product Details

  • Part Number
    RAD-2510F/12Sa
  • Manufacturer
    LINTEC Corporation Advanced Materials Operations

General Parameters

  • Air Supply
    0.6 to 0.8 Mpa, 800 L/min
  • Dicing Tape Precision
    G-18 from LINTEC
  • Efficiency
    45 wafer/h
  • Frame Size
    300 mm
  • Net Weight
    3100 kg
  • Overall Dimensions
    2165 x 3090 x 1800 mm
  • Power Supply
    3 phase AC 200 (10%) 50/60 Hz, 8.0 kW
  • Type
    Automatic
  • Vaccum
    >-80 kPa
  • Wafer Size
    200 mm, 300 mm
