Esec 2100 sD advanced i

Download Datasheet Request Information

Note : Your request will be directed to BE Semiconductor Industries N.V..

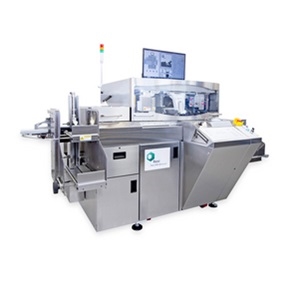

Esec 2100 sD advanced i Image

Product Specifications

Product Details

  • Part Number
    Esec 2100 sD advanced i
  • Manufacturer
    BE Semiconductor Industries N.V.

General Parameters

  • Bond Force
    0.2 to 50 N
  • Bonding Method
    Die Bonder
  • Frame Size
    203 x 305
  • Heated Bond Head
    200 Degree C max
  • Mean Time Between Failure
    > 200 h
  • Net Weight
    1600 kg
  • Overall Dimensions
    1785 x 1448 x 1400 mm
  • Standard Bond Head
    360 Degree
  • Substrate Thickness
    0.1 to 2.5 mm
  • Substrate Working Range
    300 x 125 mm
  • Type
    Automatic
  • Wafer Die Attach Size
    0.5 to 20 mm
  • Wafer Die Thickness
    > 0.075 mm
  • Wafer Size
    6 to 12 Inches
  • X Y Placement Accuracy
    15 µm (High Speed Mode), 10 µm (Accuracy Mode), 8 µm (Up Looking Vision)
