BESTEM-D340

Download Datasheet Request Information

Note : Your request will be directed to Canon Machinery Inc.

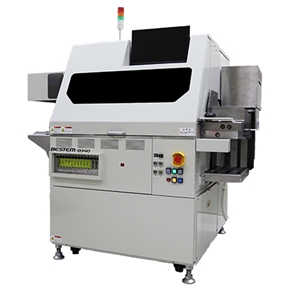

BESTEM-D340 Image

Product Specifications

Product Details

  • Part Number
    BESTEM-D340
  • Manufacturer
    Canon Machinery Inc

General Parameters

  • Bonding Cycle Time
    0.6 sec/cycle
  • Bonding Method
    Die Bonder
  • Chip Size
    3 mm
  • Compressed Air
    0.4 MPa (60L/min)
  • Frame Size
    300 x 100 mm
  • Net Weight
    1550 kg
  • Overall Dimensions
    1860 x 1320 x 1622 mm
  • Power Supply
    AC200V 30A
  • Substrate Thickness
    0.1 to 2 mm
  • Type
    Automatic
  • Wafer Die Attach Size
    0.5 to 11 mm
  • Wafer Die Thickness
    0.1 to 0.5 mm
  • Wafer Size
    8 Inches max
  • X Y Placement Accuracy
    ± 38 µm
