BESTEM-D511plus

Download Datasheet Request Information

Note : Your request will be directed to Canon Machinery Inc.

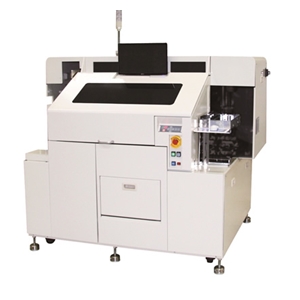

BESTEM-D511plus Image

Product Specifications

Product Details

  • Part Number
    BESTEM-D511plus
  • Manufacturer
    Canon Machinery Inc

General Parameters

  • Bonding Cycle Time
    0.39 sec/cycle
  • Bonding Method
    Die Bonder
  • Compressed Air
    0.4 MPa (60L/min)
  • Frame Size
    300 x 102 mm
  • Net Weight
    1600 kg
  • Overall Dimensions
    1900 x 1400 x 1600 mm
  • Power Supply
    AC200V 30A
  • Substrate Thickness
    0.075 to 2.0 mm
  • Type
    Automatic
  • Wafer Die Attach Size
    0.025 to 1.0 mm
  • Wafer Die Thickness
    0.025 to 1.0 mm
  • Wafer Size
    12 Inches
  • X Y Placement Accuracy
    ±20 µm
